Every week, I get tons of WhatsApp messages from international buyers asking the same questions: "How do your
road-rail excavators actually move on the tracks?" or "I saw a cheap machine that just presses its rubber tires onto the rails. Why does JG use hydraulic motors on the steel wheels instead?"
Today, let’s skip the boring textbook jargon. I’m going to give you the honest, real-world breakdown of how these dual-purpose machines work, and why your choice of drive system can make or break your railway project.
The Two Main Players: Friction Drive vs. Hydraulic Drive
Once a road-rail vehicle hops onto the train tracks, it needs a way to propel itself. In the industry, manufacturers usually choose one of two paths:
- Friction Drive (The Budget-Friendly Option)
This setup is pretty simple. The steel wheels are just there to act as guides so the machine doesn't derail. To actually move, the machine relies on its original rubber tires pressing directly onto the steel rail (or onto a drum system). The friction between the spinning rubber and the steel rail pushes the machine forward.
The Honest Truth: It’s cheaper to build, which means a lower price tag upfront. But here is the catch—if it rains, snows, or if there is a tiny bit of grease on the tracks, those tires will spin out and slide like crazy. Braking becomes a nightmare, and you will burn through expensive rubber tires incredibly fast.
- Hydraulic Drive (The JG Standard)

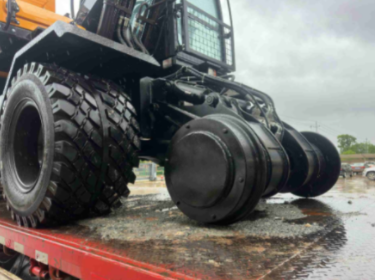

This is how we do things at JG Machinery. In this system, the rubber tires are lifted completely off the tracks. Instead, we pump high-pressure hydraulic oil directly into heavy-duty hydraulic motors built inside the steel rail wheels themselves. The steel wheels do all the driving.
The Honest Truth: Yes, engineering and manufacturing this system is more complex and costs more upfront. But man, it is rock solid. Rain, ice, or steep gradients—it doesn’t matter. Hydraulic drive gives you massive torque, precise speed control (perfect for sleeper changing), reliable braking, and zero tire wear on the tracks.
Why JG Road-Rail Machinery is Built Different
In our workshop, we don't build machines just to look good in brochures. We build them to solve the real, everyday headaches that contractors face on the job site.
Track-Ready in 3 Minutes: You can drive our
road-rail excavators right down the highway to the nearest level crossing. Flip a switch in the cab, lower the hydraulic steel wheels, and you’re a "train" in under three minutes. No low-boy trailers or heavy transport permits needed.
Global Gauge Customization: As you know, track widths vary wildly around the world—from Standard Gauge (1435mm) to the narrow gauges common in Southeast Asia or Africa. We don't do "one size fits all." Every single JG road-rail chassis is digitally customized and built to match your exact local track specifications.
A True Multi-Tool: Because our hydraulic system is so robust, you can swap out attachments on the fly. One minute you're pulling old sleepers, the next you're tamping ballast, cutting rail, or clearing brush. It’s like having an entire maintenance crew packed into one machine.
The Final Verdict
Look, if you are just doing light maintenance on a flat, private industrial spur in perfect weather, a friction-drive machine might get the job done.
But if you are bidding on serious contracts for state railways, subways, or transit authorities, do yourself a favor: invest in pure hydraulic steel-wheel drive. It works when the weather gets ugly, it keeps your operators safe, and it will save you a fortune in tires and downtime over the first year alone.
Want to see how our hydraulic chassis handles steep gradients? Drop a comment below, or send me a direct message, and I’ll send over some raw test videos straight from our factory floor!
